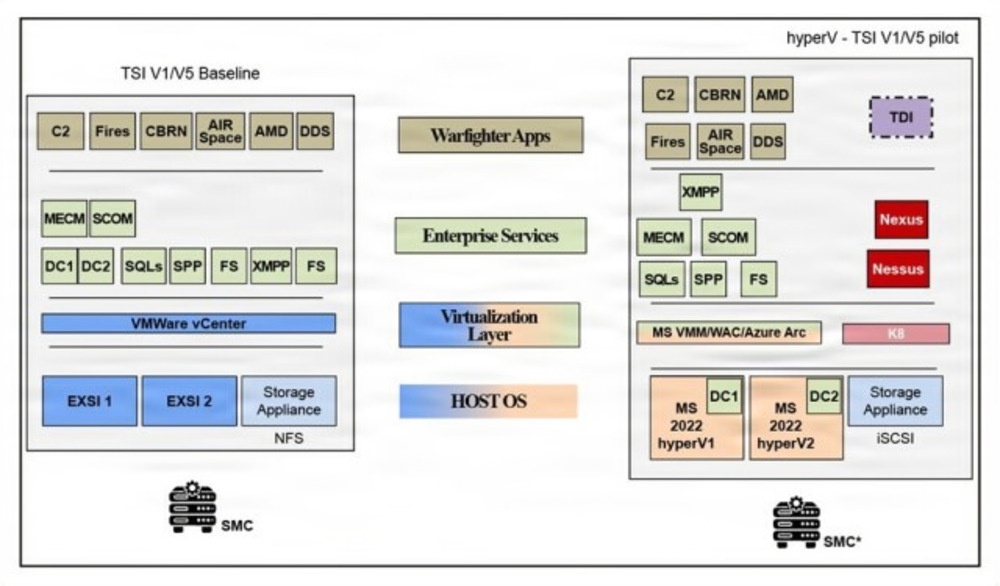

A technical architecture diagram compares the TSI V1/V5 Baseline configuration (left) with the HyperV TSI V1/V5 pilot system (right), illustrating military command and control infrastructure components. The baseline system features VMware vCenter virtualization with ESXi hosts and NFS storage, while the pilot system transitions to Microsoft Hyper-V with MS VMM/WAC/Azure Arc and iSCSI storage. Both configurations support warfighter applications including C2, Fires, CBRN, AIR Space, AMD and DDS systems, enterprise services, and supporting software components including MECM, SCOM, SQLs, SPP, FS and XMPP. The pilot architecture introduces additional security and networking tools including Nexus, Nessus, K8 and TDI components, deployed on SMC hardware platforms.
