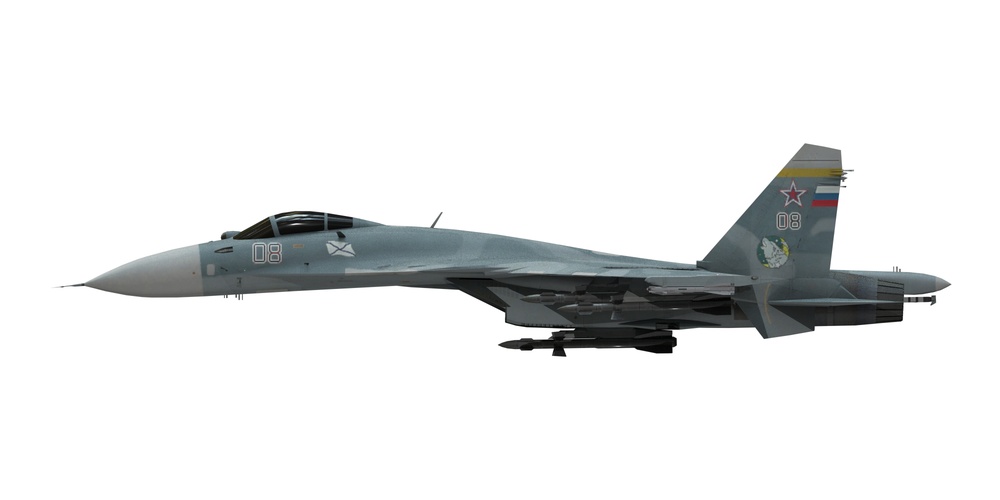

Sukhoi Su-33 Left Orthographic View
Due to the limitations of GFE and Software Center, I utilized my personal equipment and models to create this 4K render of the Orthographic View.
All requests for 3D modeling, rendering, animation, or simulations should be directed to NAWDC Media.
The Sukhoi Su-33 (Flanker-D) is a Russian single-seat, twin-engine, carrier-based air superiority fighter, derived from the Su-27 Flanker.
Here are its key specifications:
Crew: 1
Length: 21.19 m (69 ft 6 in)
Wingspan: 14.70 m (48 ft 3 in); 7.40 m (24 ft 3 in) folded
Height: 5.93 m (19 ft 5 in)
Wing Area: 62.0 m² (667 sq ft)
Empty Weight: 18,400 kg (40,565 lb)
Normal Takeoff Weight: 29,940 kg (66,007 lb)
Maximum Takeoff Weight (MTOW): 33,000 kg (72,753 lb)
Internal Fuel Capacity: 9,400 kg (20,725 lb)
Powerplant: 2 × Saturn AL-31F Series 3 afterburning turbofan engines
Thrust (dry): 74.5 kN (16,750 lbf) per engine
Thrust (with afterburner): 122.58 kN (27,557 lbf) per engine
Emergency Thrust: Up to 125.57 kN (28,230 lbf) per engine (with operating time restrictions)
Maximum Speed:
At altitude: 2,300 km/h (1,430 mph, Mach 2.17)
At sea level: 1,400 km/h (870 mph, Mach 1.1)
Service Ceiling: 17,000 m (55,774 ft)
Range: 3,000 km (1,864 miles)
Rate of Climb: >230 m/s (>45,235 ft/min)
G-Limits: +9g / -3g
Armament:
Gun: 1 × 30mm GSh-30-1 cannon with 150 rounds
Hardpoints: 12 external hardpoints with a capacity of up to 6,500 kg (14,330 lb) of ordnance
Missiles:
Air-to-Air: R-27 (AA-10 Alamo) series (R, ER, T, ET variants), R-73 (AA-11 Archer)
Anti-Ship: Kh-31A, Kh-41 Moskit
Anti-Radiation: Kh-25MP, Kh-31P
Rockets: S-8, S-13, S-25 series unguided rockets
Bombs: Various free-fall bombs (FAB-100, FAB-250, FAB-500), RBK-500 cluster bombs
Avionics: N001 pulse-Doppler radar, OEPS-27 electro-optical targeting system (IRST), SPO-15 Radar Warning Receiver (RWR), Helmet-Mounted Sight (HMS), SVP-24 targeting system (for unguided munitions precision).
Carrier Operations Features: Canards, strengthened airframe and landing gear, twin nose wheel, folding wings and stabilators, arrestor hook, in-flight refueling probe, corrosion protection.
