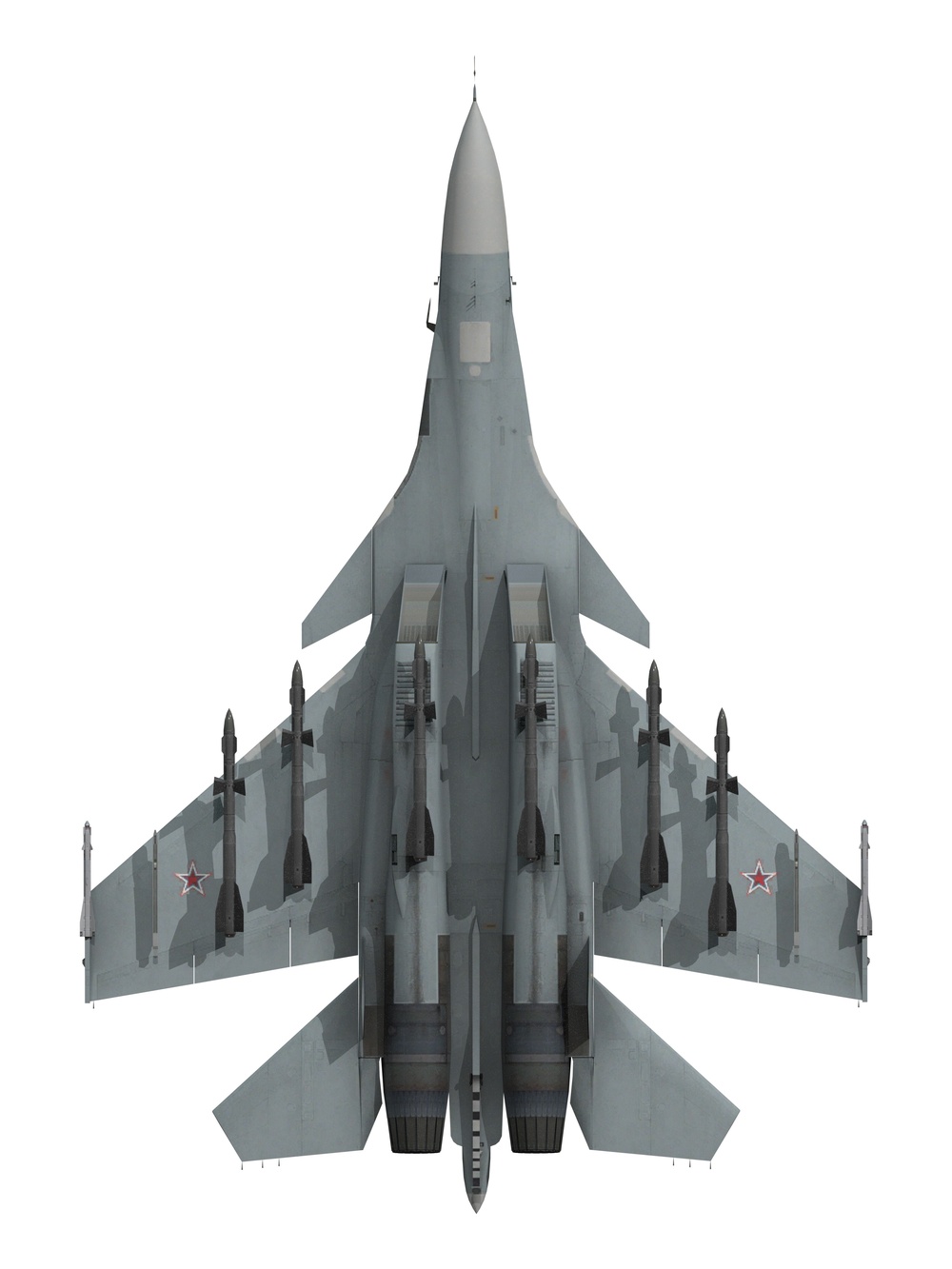

Sukhoi Su-33 Bottom Orthographic View
The Sukhoi Su-33 (Flanker-D) is a Russian single-seat, twin-engine, carrier-based air superiority fighter, derived from the Su-27 Flanker.
Here are its key specifications:
Crew: 1
Length: 21.19 m (69 ft 6 in)
Wingspan: 14.70 m (48 ft 3 in); 7.40 m (24 ft 3 in) folded
Height: 5.93 m (19 ft 5 in)
Wing Area: 62.0 m² (667 sq ft)
Empty Weight: 18,400 kg (40,565 lb)
Normal Takeoff Weight: 29,940 kg (66,007 lb)
Maximum Takeoff Weight (MTOW): 33,000 kg (72,753 lb)
Internal Fuel Capacity: 9,400 kg (20,725 lb)
Powerplant: 2 × Saturn AL-31F Series 3 afterburning turbofan engines
Thrust (dry): 74.5 kN (16,750 lbf) per engine
Thrust (with afterburner): 122.58 kN (27,557 lbf) per engine
Emergency Thrust: Up to 125.57 kN (28,230 lbf) per engine (with operating time restrictions)
Maximum Speed:
At altitude: 2,300 km/h (1,430 mph, Mach 2.17)
At sea level: 1,400 km/h (870 mph, Mach 1.1)
Service Ceiling: 17,000 m (55,774 ft)
Range: 3,000 km (1,864 miles)
Rate of Climb: >230 m/s (>45,235 ft/min)
G-Limits: +9g / -3g
Armament:
Gun: 1 × 30mm GSh-30-1 cannon with 150 rounds
Hardpoints: 12 external hardpoints with a capacity of up to 6,500 kg (14,330 lb) of ordnance
Missiles:
Air-to-Air: R-27 (AA-10 Alamo) series (R, ER, T, ET variants), R-73 (AA-11 Archer)
Anti-Ship: Kh-31A, Kh-41 Moskit
Anti-Radiation: Kh-25MP, Kh-31P
Rockets: S-8, S-13, S-25 series unguided rockets
Bombs: Various free-fall bombs (FAB-100, FAB-250, FAB-500), RBK-500 cluster bombs
Avionics: N001 pulse-Doppler radar, OEPS-27 electro-optical targeting system (IRST), SPO-15 Radar Warning Receiver (RWR), Helmet-Mounted Sight (HMS), SVP-24 targeting system (for unguided munitions precision).
Carrier Operations Features: Canards, strengthened airframe and landing gear, twin nose wheel, folding wings and stabilators, arrestor hook, in-flight refueling probe, corrosion protection.
