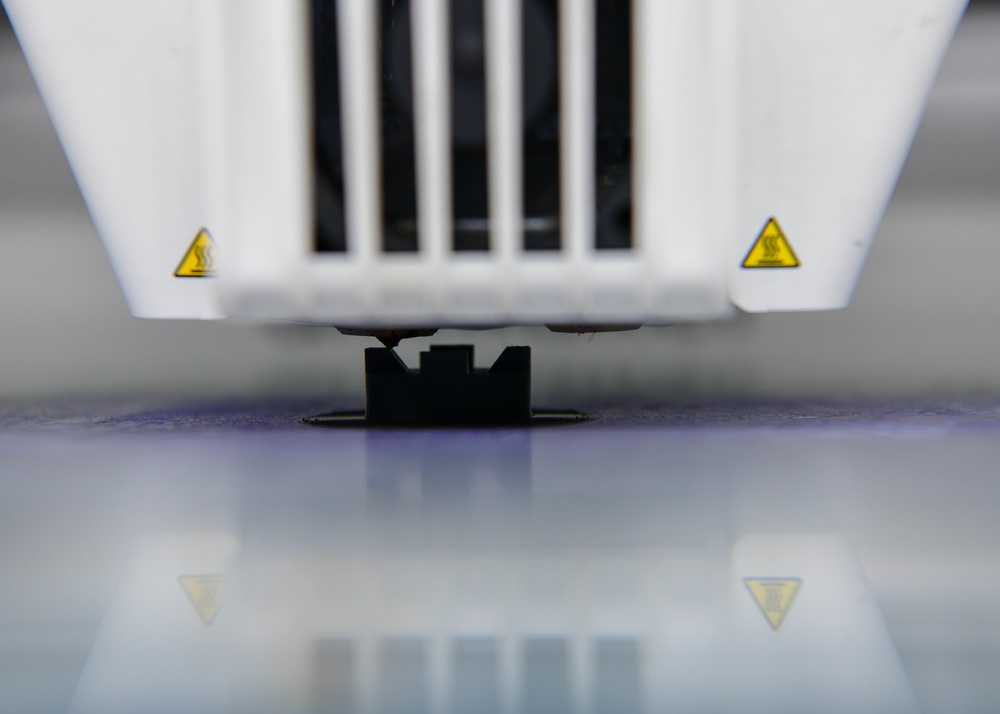

    A close-up macro photograph of a 3D printer extruder head positioned very close to a reflective print bed surface. The image captures the nozzle assembly in sharp focus at the center, with the white printer carriage body visible above featuring ventilation slots. Two yellow warning/caution triangle stickers are visible on either side of the carriage, and their reflections can be seen on the glossy print bed below.

    AVIANO AIR BASE, ITALY

    06.14.2022

    Photo by Senior Airman Brooke Keisler

    31st Fighter Wing

    A Display Management Switch (DMS) knob for an F-16 Fighting Falcon sidestick is 3D printed at Aviano Air Base, Italy, June 14, 2022. Four sections within the 31st Maintenance Group had the idea to 3D print a Display Management Switch knob for an F-16 Fighting Falcon sidestick, ultimately turning a $131.90 job into a 10 cent job and saving 30 man-hours per knob replacement. (U.S. Air Force photo by Senior Airman Brooke Moeder)
