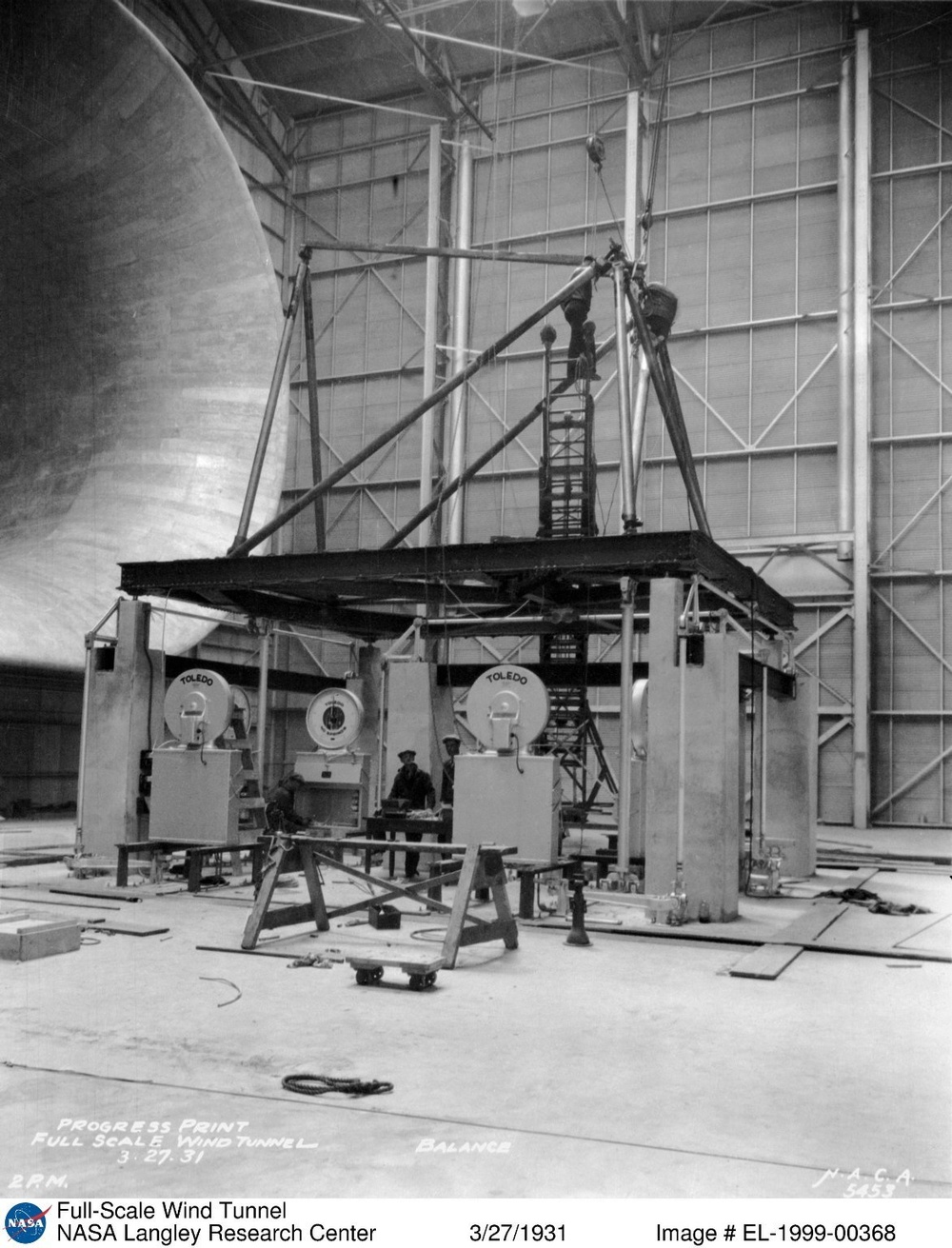

Construction of Full-Scale Tunnel (FST) balance. Smith DeFrance described the 6-component type balance in NACA TR No. 459 (which also includes a schematic diagram of the balance and its various parts). "Ball and socket fittings at the top of each of the struts hod the axles of the airplane to be tested; the tail is attached to the triangular frame. These struts are secured to the turntable, which is attached to the floating frame. This frame rests on the struts (next to the concrete piers on all four corners), which transmit the lift forces to the scales (partially visible on the left). The drag linkage is attached to the floating frame on the center line and, working against a known counterweight, transmits the drag force to the scale (center, face out). The cross-wind force linkages are attached to the floating frame on the front and rear sides at the center line. These linkages, working against known counterweights, transmit the cross-wind force to scales (two front scales, face in). In the above manner the forces in three directions are measured and by combining the forces and the proper lever arms, the pitching, rolling, and yawing moments can be computed. The scales are of the dial type and are provided with solenoid-operated printing devices. When the proper test condition is obtained, a push-button switch is momentarily closed and the readings on all seven scales are recorded simultaneously, eliminating the possibility of personal errors.
