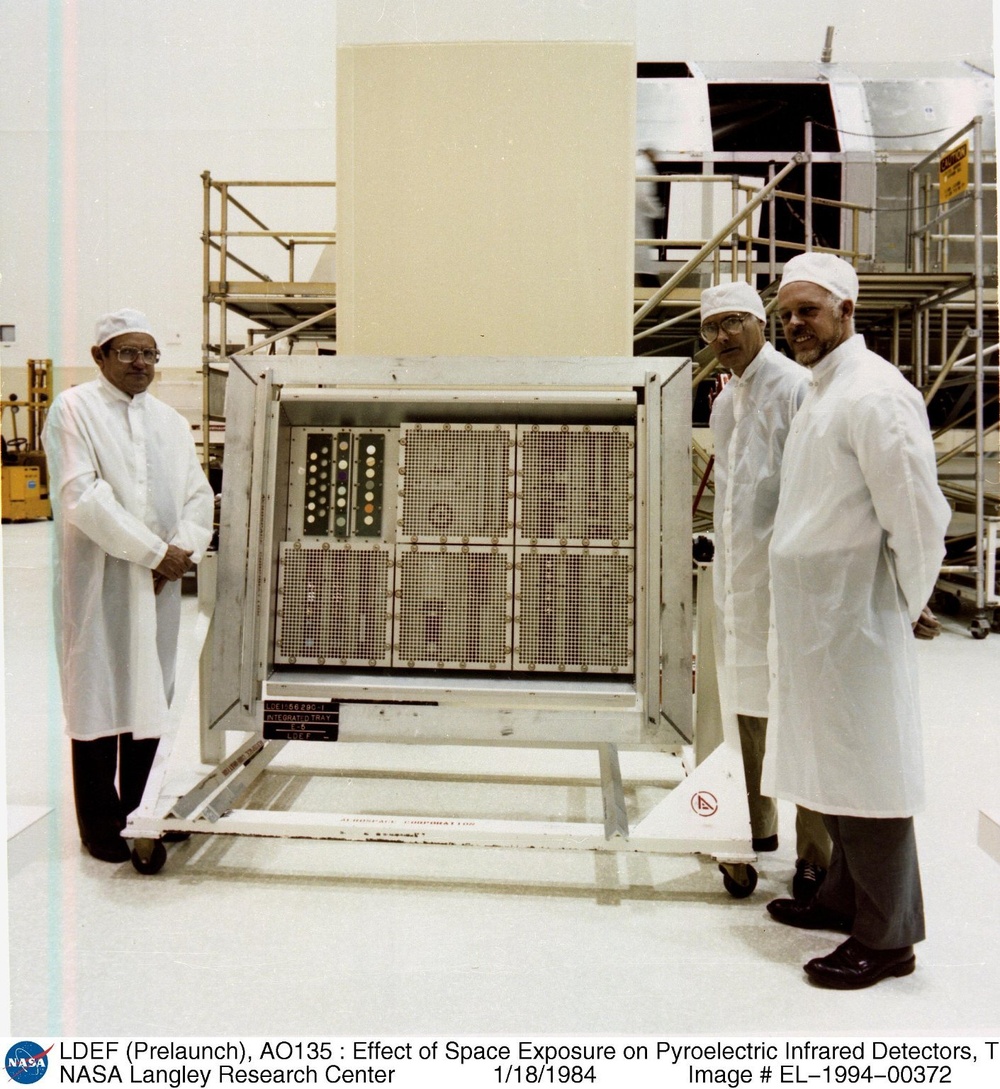

LDEF (Prelaunch), AO135 : Effect of Space Exposure on Pyroelectric Infrared Detectors, Tray E05 The prelaunch photograph was taken in SAEF II at KSC prior to installation of the integrated tray on the LDEF. The Space Exposure on Pyroelectric Infrared Detectors Experiment (AO135) consist of twenty detectors of three different types of materials, lithium-tantalate, strontium-barium-niobate and triglycine-sulfide. The Pyroelectric infrered detector experiment is an integral part of the Active Optical System Component Experiment (S0050) that contains 136 test specimen and is located in a six (6) inch deep LDEF peripheral experiment tray. The experiment tray is divided into six sections, each consisting of a 1/4 inch thick chromic anodized aluminum base plate and a 1/16th inch thick aluminum hat shaped structure for mounting the test specimen. The test specimen are typi- cally placed in fiberglass-epoxy retainer strip assemblies prior to installation on the hat shaped mounting structure. Five of the six sections are covered by a 1/8 inch thick anodized aluminum sun screen with openings that allowed 56 percent transmission over the central region. Two subexperiments, The Optical Materials and UV Detectors Experiment (S0050-01) consist of 15 optical windows, filters and detectors and occupies one of the trays six sub-sections and The Optical Substrates and Coatings Experiment (S0050-02 ) that includes 12 substrates and coatings and a secondary experiment, The Holographic Data Storage Crystal Experiment (AO044) with four crystals, are also mounted in the integrated tray. The experiment structure was assembled with non-magnetic stainless steel fasteners.
